RADIUM ENGINEERING COSMO 13B RE PRIMARY & SECONDARY FUEL RAIL SET

Whether you're simply upgrading injectors on your stock injectors in your 13B Cosmo, or carrying out an engine conversion into an earlier model car with a 13B RE, this Radium Engineering Primary & Secondary Fuel Rail Kit will help you get the job done neatly and most importantly, correctly.

This high-flow fuel rail set has been designed for the 13B-RE rotary engines with a large internal bore to support both stock & high-horsepower applications and supplies you with everything you need to set up with your chosen injectors and go. Each rail is CNC machined from billet 6061 aluminium and anodized black for sleek looks and full compatibility with all popular fuel types including ethanol E85.

Both the primary & secondary each feature three 8AN ORB ports off the shelf, with the extra centre port supporting additional fuel system accessories such as the OEM fuel temperature sensor. If not required they can simply be blocked with an in-hex blanking plug which can be purchased separately (see extras tab)

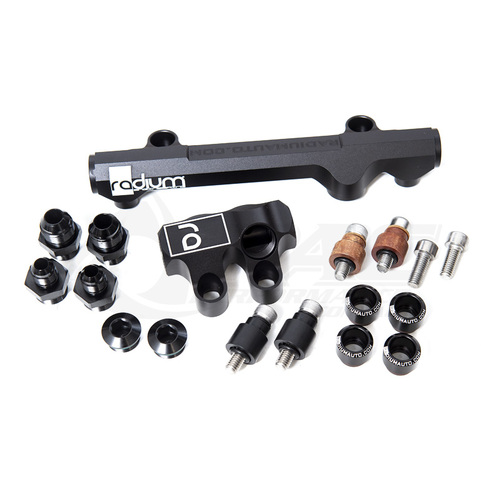

What's Included:

- Primary Fuel Rail
- Secondary Fuel Rail
- 4x 11mm Insulating Spacers & Washers
- 2x 20mm Insulating Spacers & Washers
- 4x Stainless Allen Head Bolts
- 4x 14mm Injector Seats
- 2x 6AN Fittings
- 2x 8AN Fittings
- 2x 8AN In-Hex Plugs

Applications:

- 13B-RE (Cosmo 13B)

The Radium Engineering Installation Guide can be found HERE
