HALTECH IC-7 DISPLAY DASH

$1,600.00

or 4 payments of $400.00 with Learn more

Sold Out


Description

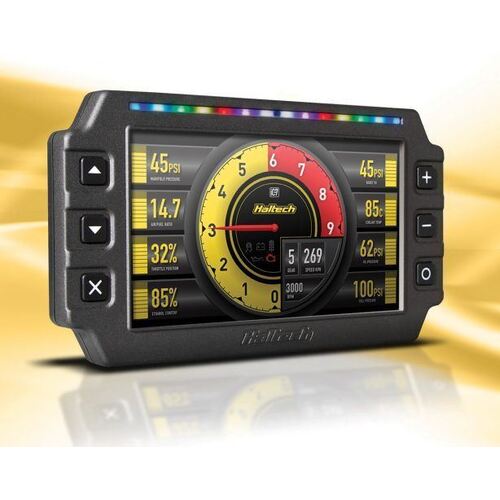

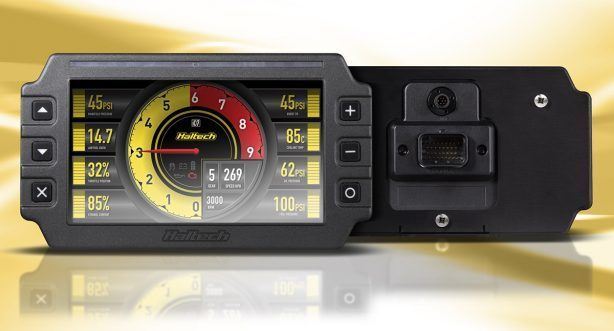

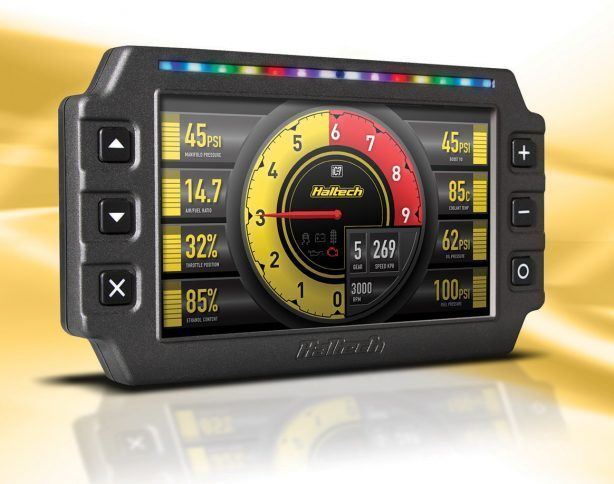

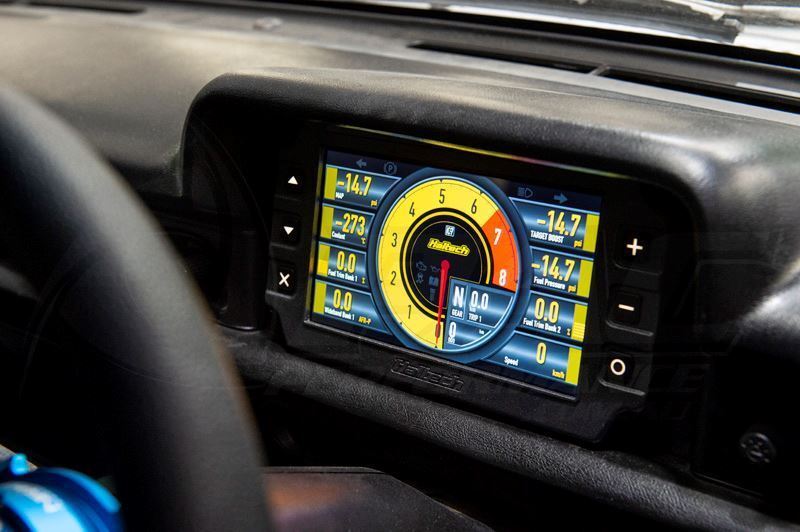

An exciting new addition to the Haltech Range, the IC-7 Display Dash features a crisp, full colour display that will let you see your engines vital data in a whole new way, whilst transforming the look of your car's dash!

NOW AVAILABLE -The Haltech IC-7 offers a host of cool features likeauto-dimming ambient light-reactive brightness, user-programmable multi-colour shift light bar, the IC-7 connects directly to all current Haltech ECUs via a CAN network. The IC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port.

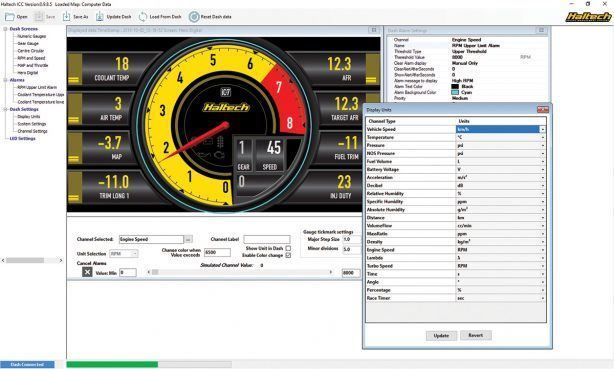

The IC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behaviour including:

¥ Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph.
¥ Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tacho.
¥ Display units. Eg. metric or imperial, Lambda or AFR.
¥ The channel to be displayed at each location on the screen.
¥ The connection method. Eg. Haltech CAN or OBD-II.
¥ Shift light RPM points and colours.
¥ Alarm thresholds, colour for on-screen display and shift lights, manual or auto reset methods.

Key Features:

- Ideal replacement for individual analogue gauge clusters.
- Easy to install and configure.
- User adjustable brightness control with automatic dimming.
- User configurable channels, units and alarms.
- 14 programmable, seven colour shift light LEDs.
- Controlled via easily accessible, face-mounted control buttons.
- Configuration via Haltech IC-7 software and USB cable.

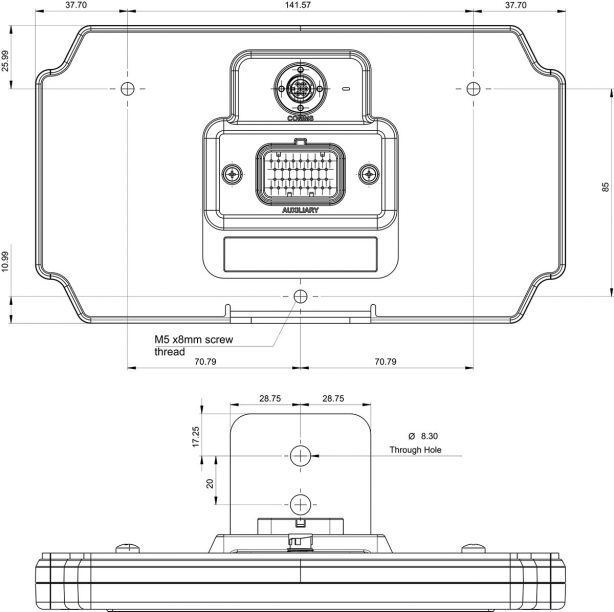

- Screen size: 7in. Case size: 217 x 122mm (8.5_ x 4.8_)



Specifications

SKU HAL-IC7DASH
Brand Haltech
